LABORATORY TESTS
• chemical analysis
• tensile test
AVAILABLE CERTIFICATES
• Technical product specifications
• Test report UNI EN10204 type 2.2
8210
Jaw and jaw pipe turnbuckle AISI 316

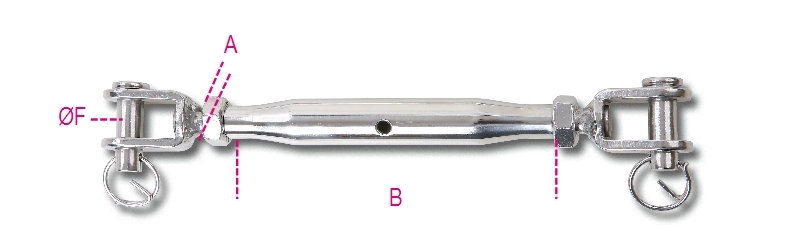

Images with dimensions
Product Name
Art.
A
mm
B
mm
ø F
mm
WFL
kg
L min
mm
H
mm
BF
kg
082100205
8210 M5
M5
81
5
115
130
10
740
082100206
8210 M6
M6
92
6
160
145
10
1180
082100208
8210 M8
M8
112
8
300
175
11
2200
082100210
8210 M10
M10
121
10
470
200
15
3460
082100212
8210 M12
M12
150
12
690
250
18
5000
082100214
8210 M14
M14
169
14
940
300
5440
082100216
8210 M16
M16
190
16
1290
355
22
6800
082100220
8210 M20
M20
220
20
2130
420
28
8800
